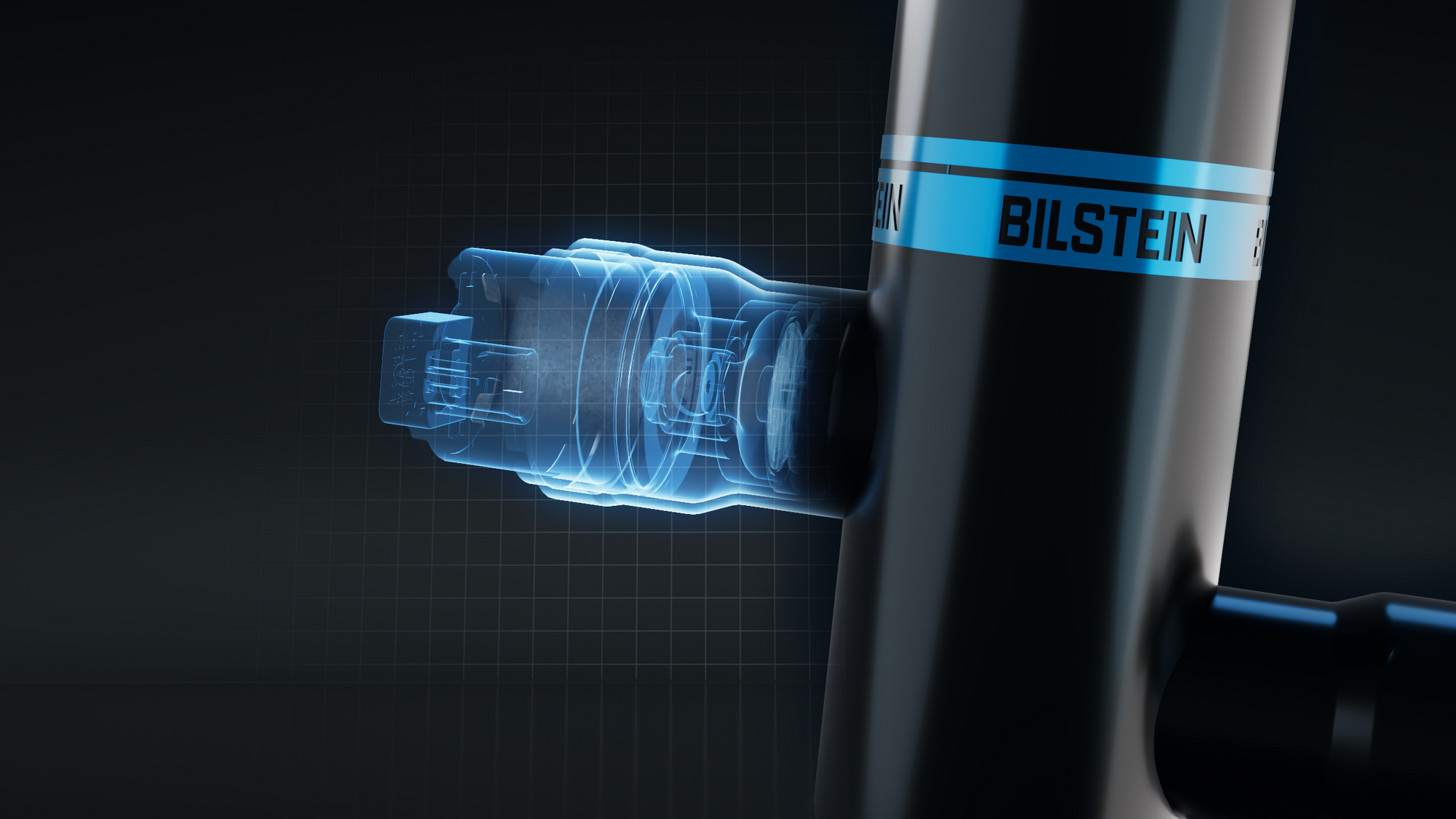

Understanding Bilstein Technology: Why Monotube Matters
In the world of automotive suspension, not all shock absorbers are created equal. While many drivers focus on brand names or price points when selecting suspension components, the underlying technology that governs how these systems function makes the difference between a mediocre driving experience and exceptional performance. At the heart of Bilstein's technological superiority lies the monotube gas pressure design – a revolutionary approach to shock absorber engineering that has redefined what's possible in suspension performance.
Understanding why monotube technology matters requires examining not just how it works, but how it fundamentally differs from conventional approaches and why these differences translate into real-world benefits that drivers can feel every time they get behind the wheel. For customers of Bilstein Suspension Store, this technical knowledge provides the foundation for making informed decisions about suspension upgrades and understanding the value proposition that Bilstein technology represents.
The Science Behind Shock Absorber Function
Before exploring the specific advantages of monotube design, it's essential to understand the fundamental role that shock absorbers play in vehicle dynamics. Contrary to popular belief, shock absorbers don't actually support the weight of the vehicle – that's the job of the springs. Instead, shock absorbers control the oscillation of the springs, managing how quickly they compress and extend in response to road irregularities and vehicle dynamics.
When a wheel encounters a bump or pothole, the spring compresses to absorb the impact energy. Without a shock absorber, this spring would continue to oscillate up and down long after the initial impact, creating an uncomfortable and potentially dangerous bouncing motion. The shock absorber's job is to dampen these oscillations quickly and efficiently, allowing the wheel to maintain contact with the road surface while providing a controlled, comfortable ride for the vehicle's occupants.
This damping function is achieved through the controlled movement of hydraulic fluid through precisely engineered valving systems. As the shock absorber's piston moves up and down within the cylinder, hydraulic fluid is forced through small orifices and valve systems that create resistance to movement. This resistance converts the kinetic energy of the spring oscillation into heat energy, which is then dissipated to the surrounding environment.
The effectiveness of this energy conversion process depends on several critical factors: the consistency of the hydraulic fluid's properties, the precision of the valving system, the shock absorber's ability to dissipate heat, and the maintenance of proper pressure within the system. These factors form the foundation for understanding why monotube technology offers superior performance compared to conventional twin-tube designs.
Twin-Tube Technology: The Traditional Approach
To appreciate the advantages of monotube design, it's important to understand the conventional twin-tube technology that dominated shock absorber design for decades. Twin-tube shock absorbers feature two concentric cylinders: an inner working cylinder where the piston operates, and an outer reserve cylinder that contains additional hydraulic fluid and a gas charge.
In a twin-tube design, as the piston moves upward during compression, hydraulic fluid is displaced from the working cylinder into the reserve cylinder through a base valve located at the bottom of the shock absorber. During the extension stroke, fluid flows back from the reserve cylinder into the working cylinder. This design allows for a compact package and has been successfully used in millions of vehicles worldwide.
However, twin-tube technology has several inherent limitations that become apparent under demanding conditions. The base valve that controls fluid flow between the cylinders can become a restriction point, limiting the shock absorber's ability to respond quickly to rapid changes in road conditions. The separation of working and reserve cylinders also creates challenges for heat dissipation, as the heat generated in the working cylinder must be transferred through the hydraulic fluid to the outer cylinder before it can be dissipated to the environment.
Additionally, twin-tube shock absorbers are sensitive to mounting orientation. They must be mounted with the piston rod pointing upward to ensure proper fluid distribution between the cylinders. This orientation requirement limits installation flexibility and can complicate vehicle design, particularly in applications where space constraints or suspension geometry considerations might favour alternative mounting positions.
Perhaps most significantly, the gas charge in twin-tube shock absorbers is separated from the working cylinder by the hydraulic fluid, which can lead to aeration under extreme conditions. When the shock absorber is subjected to rapid, high-amplitude movements, the hydraulic fluid can become aerated with gas bubbles, leading to a phenomenon known as "fade" where the shock absorber temporarily loses its damping effectiveness.
Monotube Technology: The Bilstein Revolution
Bilstein's monotube gas pressure technology addresses each of the limitations inherent in twin-tube designs through a fundamentally different approach to shock absorber construction. In a monotube shock absorber, all components are contained within a single, larger-diameter cylinder. The piston operates directly within this cylinder, with hydraulic fluid on one side and a gas charge on the other, separated by a floating piston that moves freely within the cylinder.
This design eliminates the base valve restriction that can limit twin-tube performance, allowing for more immediate and precise response to changing road conditions. The larger cylinder diameter provides increased surface area for heat dissipation, enabling the shock absorber to maintain consistent performance even under extreme operating conditions. The direct contact between the gas charge and hydraulic fluid, mediated by the floating piston, ensures optimal pressure maintenance and prevents the aeration issues that can affect twin-tube designs.
One of the most significant advantages of monotube technology is its orientation independence. Because the gas charge is always in direct contact with the hydraulic fluid through the floating piston, monotube shock absorbers can be mounted in any orientation without affecting their performance. This flexibility has proven particularly valuable in motorsport applications, where the upside-down mounting configuration has become popular for its improved un-sprung weight distribution and enhanced cooling characteristics.
The gas pressure in monotube shock absorbers serves multiple critical functions. First, it prevents cavitation of the hydraulic fluid, ensuring consistent damping performance even under extreme conditions. Second, it provides a spring effect that helps support the vehicle's weight, reducing the load on the primary springs. Third, it maintains positive pressure on the hydraulic fluid, preventing the formation of air bubbles that could compromise damping effectiveness.
The Physics of Gas Pressure Technology
The scientific principle underlying Bilstein's gas pressure technology traces back to the discovery by French researcher Bourcier de Carbon, who found that gas contained in oil at a proportion of up to ten percent could be bonded under sustained pressure. This discovery revealed that maintaining hydraulic fluid under pressure prevents the formation of foam when temperatures and loads increase, ensuring that full damping power is retained even when the system is placed under extreme stress.
In practical terms, this means that a Bilstein monotube shock absorber maintains its damping characteristics consistently across a wide range of operating conditions. Whether the vehicle is navigating city streets at low speeds, cruising on the highway, or being pushed to its limits on a race track, the gas pressure technology ensures that the shock absorber continues to provide precise, predictable control over suspension movement.
The pressure maintenance also enables what Bilstein calls the "self-lowering piston" feature. Under extreme stress conditions that might cause other shock absorbers to lose effectiveness, the gas pressure in Bilstein monotube units actually helps maintain optimal piston position and fluid distribution, ensuring that damping performance is preserved when it's needed most.
This pressure-maintained system also contributes to the exceptional longevity that Bilstein shock absorbers are known for. By preventing the formation of air bubbles and maintaining optimal fluid conditions, the gas pressure technology reduces internal wear and extends the service life of the shock absorber components. Many Bilstein customers report satisfactory performance from their shock absorbers for well over 100,000 miles, with some units continuing to function effectively for much longer periods.
Upside-Down Technology: Taking Monotube Further
Building on the foundation of monotube gas pressure technology, Bilstein developed the upside-down configuration that has become particularly popular in high-performance and motorsport applications. In an upside-down shock absorber, the piston rod extends downward from the top of the unit, with the main cylinder body mounted to the vehicle's sprung mass and the piston rod connected to the un-sprung mass.
This configuration offers several performance advantages that are particularly valuable in demanding applications. The inverted design places the larger-diameter cylinder body higher in the suspension system, where it can benefit from better airflow for cooling. The reduced un-sprung weight at the wheel end of the shock absorber improves suspension response and wheel control, particularly important for maintaining tire contact with the road surface during aggressive driving or racing conditions.
The upside-down configuration also provides a larger effective surface area on the working piston, which creates increased damping power and better handling characteristics. The improved dissipation of thermal energy enables consistently high absorber performance even during extended periods of demanding use, such as long track sessions or competitive racing events.
For motorsport applications, the upside-down design offers additional benefits in terms of serviceability and adjustment. The main shock absorber body is more accessible for maintenance and adjustment when mounted higher in the suspension system, and the configuration often allows for easier integration with adjustable suspension components and telemetry systems.
Real-World Performance Benefits
The technical advantages of monotube gas pressure technology translate into tangible benefits that drivers can experience in everyday driving situations. The improved heat dissipation characteristics mean that Bilstein shock absorbers maintain their performance characteristics even during extended periods of demanding use, such as mountain driving, towing heavy loads, or spirited driving on winding roads.
The elimination of base valve restrictions results in more immediate response to changing road conditions. When a wheel encounters a bump, pothole, or other road irregularity, a Bilstein monotube shock absorber can react more quickly and precisely than a twin-tube design, providing better control over wheel movement and maintaining optimal tire contact with the road surface.
The orientation independence of monotube technology has enabled vehicle manufacturers and suspension designers to optimize shock absorber placement for improved vehicle dynamics rather than being constrained by the mounting requirements of twin-tube designs. This flexibility has contributed to better weight distribution, improved packaging efficiency, and enhanced overall vehicle performance in many applications.
For vehicles that are frequently loaded with passengers or cargo, the gas pressure technology provides additional support that helps maintain proper ride height and suspension geometry. This is particularly beneficial for trucks, SUVs, and vehicles used for towing, where varying load conditions can significantly affect suspension performance with conventional shock absorbers.
Testing and Quality Assurance
Bilstein's commitment to monotube technology excellence extends beyond design and manufacturing to comprehensive testing and quality assurance programs. Every Bilstein shock absorber undergoes extensive evaluation through the company's legendary road test program, conducted at their own test circuit in Papenburg and at the demanding Nürburgring Nordschleife.
This testing process evaluates not just the shock absorber's basic damping characteristics, but its performance across a wide range of conditions and applications. Engineers test for consistency across temperature ranges, durability under extreme conditions, compatibility with various spring rates and suspension geometries, and long-term reliability under real-world operating conditions.
The testing philosophy recognizes that a shock absorber's performance depends not just on its individual characteristics, but on how it interacts with other suspension components and the vehicle as a whole. This systems approach to testing ensures that Bilstein monotube shock absorbers deliver optimal performance when installed on actual vehicles, not just when evaluated in isolation on test equipment.
Quality control measures extend throughout the manufacturing process, with each shock absorber subjected to multiple inspection and testing procedures before leaving the factory. This comprehensive approach to quality assurance ensures that every Bilstein product meets the same exacting standards that have built the company's reputation for excellence over more than 150 years.
Applications Across Vehicle Types
The versatility of monotube gas pressure technology has enabled Bilstein to develop suspension solutions for virtually every type of vehicle and application. From basic OE replacement shock absorbers that restore original ride quality to high-performance racing components designed for professional motorsport, the fundamental advantages of monotube technology provide benefits across the entire spectrum of automotive applications.
For passenger cars, monotube technology delivers improved ride quality, better handling characteristics, and enhanced safety through more precise control over suspension movement. The technology's ability to maintain performance under varying load conditions makes it particularly valuable for vehicles that serve multiple roles, from daily commuting to weekend recreational activities.
Commercial vehicles and trucks benefit significantly from the load-carrying capabilities and durability of gas pressure technology. The additional support provided by the gas charge helps maintain proper suspension geometry under heavy loads, while the superior heat dissipation characteristics ensure consistent performance during extended periods of demanding use.
In motorsport applications, monotube technology has become virtually universal among serious competitors. The precise control, consistent performance, and durability advantages of gas pressure technology provide the performance edge that can make the difference between winning and losing in competitive racing environments.
The Future of Monotube Technology
As the automotive industry continues to evolve, with new challenges presented by electric vehicles, autonomous driving systems, and changing performance expectations, Bilstein's monotube gas pressure technology continues to provide a foundation for innovation. The fundamental advantages of the monotube design – superior heat dissipation, precise control, orientation independence, and consistent performance – remain as relevant for future vehicle technologies as they are for today's applications.
Electric vehicles, with their unique weight distribution characteristics and instant torque delivery, benefit particularly from the precise control and consistent performance that monotube technology provides. The technology's ability to maintain performance under varying conditions is valuable for vehicles that may experience widely different operating scenarios as autonomous driving systems take over various aspects of vehicle control.
Advanced electronic control systems that can adjust damping characteristics in real-time build upon the foundation of monotube technology, using its superior responsiveness and precision as the basis for even more sophisticated suspension control strategies. The orientation independence of monotube design also provides flexibility for innovative suspension configurations that may be required for future vehicle architectures.
Making the Right Choice for Your Vehicle
For customers considering suspension upgrades, understanding the advantages of monotube gas pressure technology provides a foundation for making informed decisions about their vehicle's suspension system. While the initial cost of Bilstein monotube shock absorbers may be higher than some alternatives, the long-term value proposition includes superior performance, enhanced durability, and the peace of mind that comes from choosing technology that has been proven in the most demanding applications.
The choice between different Bilstein product lines – from the B4 OE replacement series to the advanced B16 coilover systems – should be based on your specific performance requirements and driving priorities. However, regardless of which Bilstein product you choose, you'll benefit from the fundamental advantages of monotube gas pressure technology that have made Bilstein the preferred choice of automotive manufacturers, professional racing teams, and discerning drivers worldwide.
When you choose Bilstein suspension components from Bilstein Suspension Store, you're not just buying shock absorbers – you're investing in technology that represents more than 60 years of continuous development and refinement. The distinctive yellow colour of Bilstein shock absorbers serves as a visible reminder of the advanced technology contained within, technology that continues to set the standard for suspension performance across the automotive industry.
To learn more about how Bilstein's monotube gas pressure technology can enhance your vehicle's performance, contact us. Our knowledgeable staff can help you select the perfect Bilstein suspension components for your specific vehicle and driving requirements, ensuring that you get the maximum benefit from this revolutionary technology.
